Scale SG8-DSM

Studio-grade, Industrial-strength Cables
Scale Technologies multicore cables have been pushing the envelope of detail-oriented design and construction since day one. For superior signal quality, these cables use high-quality copper. Scale Technologies use 24 AWG (American Wire Gauge) wire and ultra-durable connectors to give you premium sound quality that will stand the test of time. Each multicore cables cable features 100% noise shielding that makes sure you hear all of your audio — and nothing else. Finally, the cable is wrapped in a stout jacket that rejects normal wear and tear. Scale Technologies  multicore cables represent a step forward in cable construction.

Features:

• For use on nearly all machines and consoles equipped with an industry standard analog pin-out
• Tascam DB-25 pin configuration
• Low-noise, all-metal D-sub shells
• Combines 8 balanced analog signals into a single connector
• Hand soldered State-of-the-art pin termination
• Tangle resistant Techflex braided sleeving on all fanouts
• Easy-to-grab metal thumb screws
• Included 2 cable straps
• Lifetime guarantee
• Available in 1.5 meter and 3.5 meter

Specifications:

• Cable:
  • Model: MPX-08M
  • An inner core: 8x2
  • O.D.: 10.8mm
  • outside diameter tolerance: +/-0.4mm
  • Diameter of the inner core: 2.3 + 0.1 mm
  • Conductor area: 0.22 mm2 / AWG 24 / 7x 0.20mm tinned copper
  • Conductor insulation: HDPE DM1. 1 + 0. 1mm
  • Shield: The aluminum foil and grounding wire are used for double shielding
  • Jacket material: Phthalate free PVC with restricted substance
  • 2mm heat-shrinkable tube to protect each internal welding point to the conductor
  • Working temperature: Mobile: -5°C to +70°C, Fixed: -20° to +70°C
• Connectors:
  • Model name: SC013 / Custom DB25 in metal with gold-plated contacts

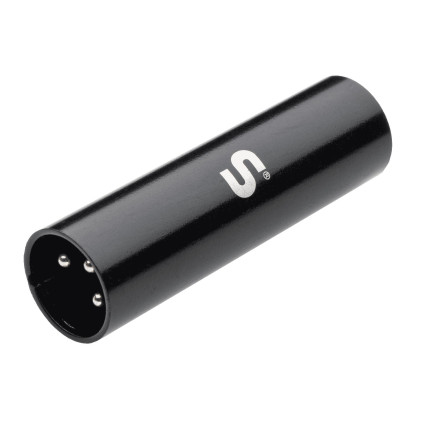

  • Product type: XLR-male/ DB25
  • Tascam DB-25 pin configuration
  • Number of poles XLR: 3
  • Contact surface: black
  • Connection type: solder contact
  • Colour: gold
  • Housing: Cast zinc
  • Clamping sleeve: Polyacetal (POM)
  • Temperature range: -30 °C to +80 °C
