Telefunken M80

Condenser-like Performance with Dynamic Convenience
Over the last decade the M80 has become a staple in live sound reinforcement and studio recording. Its wide frequency response, condenser-like performance, and high SPL capabilities allow the M80 to capture the full range of any sound source, making it a reliable first choice for many sources including lead vocals and snare drum. Its unmatched performance is mated with intelligent internal construction to provide low handling noise. Hand-assembled in the USA, the M80’s rugged build quality is designed to withstand the wear and tear of the road.

Sonic Characteristic
Due to its low mass capsule and super thin (yet surprisingly rugged) capsule membrane the M80 presents a wider range of emotion from a live vocal with an intimacy that has been traditionally reserved for studio quality condenser microphones. The head and capsule assembly has been designed to reduce proximity effect to which nets added low end clarity for vocals, while still providing "strength" and "authority" and an "open," "airy" character without adding danger of upper midrange feedback or "honk."

Circuit Design
The M80 features a custom wound impedance matching transformer which is where the magic really takes place. When coupled with our proprietary capsule assembly, the results have won hearts and minds in far less time since it's introduction than we ever imagined possible.

Construction
Featuring a rugged black powder coat body and head-turning chrome plated headgrille, the M80 is built for the high demands of a touring vocal mic.

Accessories

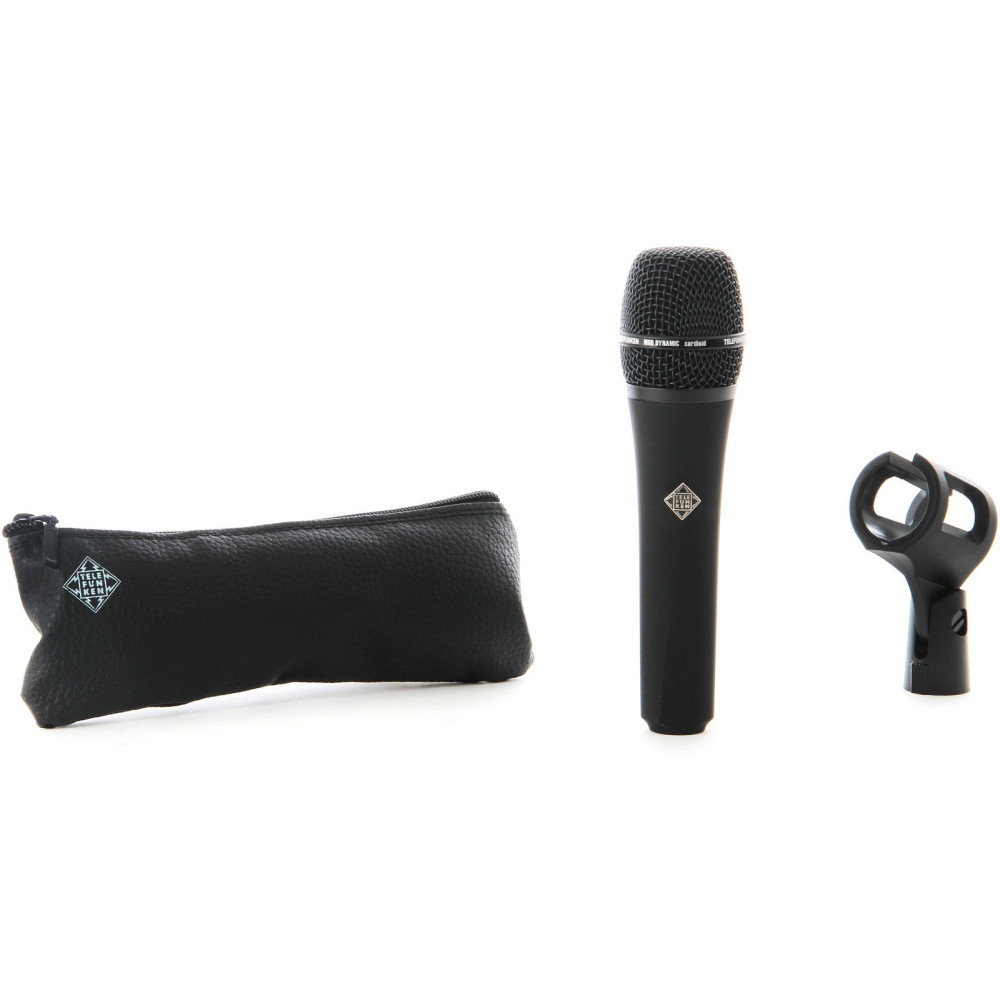

Each M80 Dynamic microphone ships with a leather zipper bag and M780 mic clip.

Technical Specifications

• Type: Dynamic
• Polar Pattern: Supercardioid
• Frequency Range: 50 Hz - 18 kHz, ±3 dB
• Capsule: 25mm Dynamic Moving Coil
• Transformer: TELEFUNKEN Elektroakustik T80
• Sensitivity: 1.54 mV/Pa, ±1 dB
• Output Impedance: 325 Ω
• Maximum SPL (for 1% THD): 135 dB
• Dimensions/Size: 184 mm L x 48 mm Dia
• Weight: 430 g
• Included Accessories: Mic Clip, Zip Pouch
